Ever stared into your pond, only to see a murky green haze instead of your prized fish? It’s a classic frustration for pond owners. This "pea soup" effect is almost always down to a massive bloom of tiny, single-celled algae floating in the water.
While a natural process, it spoils the view and can disrupt your pond's ecosystem. This is where an ultraviolet clarifier for ponds steps in. It's a reliable, long-term solution for keeping your pond water crystal clear.
Why Your Pond Water Turns Green and How a UV Clarifier Fixes It
So, how does this clever device work its magic?
The Science of Clear Water
A UV clarifier is like a targeted sunburn for algae. It's not a filter itself but a partner that makes your main filter system much more effective.
Here's the step-by-step process:
- Water In: Your pond pump sends water through the UV clarifier unit.
- The Zap: Inside, water flows around a powerful UV-C lamp housed in a protective quartz sleeve.
- Cell Damage: This intense ultraviolet light blasts the free-floating algae, damaging their DNA.
- Clumping Together: The UV radiation causes the algae to clump together into larger particles, a process called flocculation.
- Easy Removal: These new clumps are now large enough for your main pond filter's mechanical media to easily trap and remove them.
A UV clarifier won't harm the beneficial bacteria in your filter or on pond walls. It only affects what's suspended in the water passing the lamp, leaving your biological filter undisturbed.
This cycle runs continuously with your pump, systematically clearing the water. Because it’s a physical process, it's completely safe for fish, plants, and wildlife, with no chemicals added to the pond.
UV Clarifier's Role in Your Pond Ecosystem
| Function | What a UV Clarifier Does | What a UV Clarifier Does Not Do |
|---|---|---|
| Algae Control | Targets free-floating, single-celled algae (green water) and clumps it for easy removal. | Kills string algae (blanket weed) or algae growing on pond surfaces. |
| Water Clarity | Drastically improves water clarity, removing the "pea soup" effect. | Physically filters out large debris like leaves, fish waste, or sludge. |
| Pathogen Control | Can reduce levels of some free-floating harmful bacteria and parasites. | Sterilises the entire pond or replace good pond hygiene. |
| Filtration Support | Makes the mechanical stage of your main filter more effective by enlarging algae particles. | Replaces a biological filter; it has no impact on breaking down ammonia or nitrite. |
Ultimately, a UV clarifier is a specialist tool for a very specific, important job in your pond's life support system.
Proven Effectiveness in Ponds
For UK hobbyists, the ultraviolet clarifier for ponds has been a game-changer. A correctly sized UV unit can reduce green water by up to 90%, often in just a few days. This makes it a far better solution than chemical treatments that could harm your fish.
Of course, pristine clarity is part of a bigger picture. Overall water quality still relies on good pond-keeping, like regular water changes. To refine your routine, see our guide on how to plan your Koi pond water changes.
What Are the Key Benefits of Adding a UV Clarifier to Your Pond?
Adding an ultraviolet clarifier brings advantages beyond just aesthetics. While clear water is the most visible benefit, the real improvements help create a healthier, more stable home for your fish.
Turning a green pond into a stunning feature is a huge win, but that clarity fundamentally improves the entire ecosystem.
Creates a Healthier Environment for Fish and Plants
Clear water allows sunlight to penetrate deeper, reaching submerged aquatic plants and fuelling photosynthesis. These plants then release oxygen into the water, creating a more oxygen-rich environment for your fish.
This leads to fantastic outcomes:
- Reduced Fish Stress: Clear, oxygenated water helps fish breathe easily and reduces stress that can lead to illness.
- Vibrant Plant Growth: Submerged plants thrive with enough light, aiding natural filtration.
- Enhanced Visibility: You can see your fish clearly, allowing you to monitor their health and behaviour.
A Chemical-Free Solution to Green Water
The biggest advantage of using an ultraviolet clarifier for ponds is eliminating green water without resorting to chemical treatments. Algaecides can be harsh and pose a risk to fish, beneficial bacteria, and other pond life.
A UV clarifier offers a safe, physical method. By targeting only the free-floating algae passing through it, the unit leaves the rest of your pond’s ecosystem untouched. This chemical-free approach is a cornerstone of responsible, modern pond keeping.
Helps with Disease Prevention
While its main job is to zap algae, the powerful UV-C light can also neutralise certain waterborne pathogens like harmful bacteria and parasites as they pass through the chamber.
By reducing the number of free-floating pathogens, a UV clarifier helps lower the risk of common fish diseases, contributing to the long-term health of your fish.
This process works with your main filtration system. While a biological filter deals with ammonia and nitrite, the UV clarifier adds another layer of protection. To learn how these parts work together, see our guide to modern pond water filtration systems. This integrated approach is key to a pond that is not just clear, but genuinely healthy.
How to Choose the Right UV Clarifier for Your Pond
Choosing the right ultraviolet clarifier for your pond is critical in the battle against green water. Using a unit that's too weak for your pond's needs leads to frustration and persistently green water.
To guarantee success, match the clarifier's power to your pond's volume, fish stock, and sun exposure. Getting this right from the start puts you on the fast track to crystal-clear water.
First Things First: Calculate Your Pond's Volume
Before looking at UV models, you must know your pond's exact volume. An estimate isn't enough; you need a precise figure in litres to ensure the unit you buy is powerful enough.
For a square or rectangular pond, the calculation is simple: Length (m) x Width (m) x Average Depth (m) x 1000 = Volume in Litres
It's trickier with irregular shapes, but accuracy is vital. If you need help, our handy online pond volume calculator can do the work for you.
Understand the Key Sizing Factors
Once you have your volume, other variables come into play. Sunlight and fish load place significant pressure on your filtration system.
-
Sunlight Exposure: A pond in direct sun will struggle more with algae than one in partial shade. Sunlight fuels algae growth, so a sunny pond needs a more powerful UV clarifier.
-
Fish Stocking Level: The number and size of your fish matter. Koi, in particular, produce a lot of waste, which breaks down into nitrates—a food source for algae. A heavily stocked koi pond will need a much more powerful UV unit than a wildlife pond with few small fish.
The principle is simple: more sun and more fish mean more nutrients for algae. To combat this, you need more UV power to stop algae growth and keep the water clear.

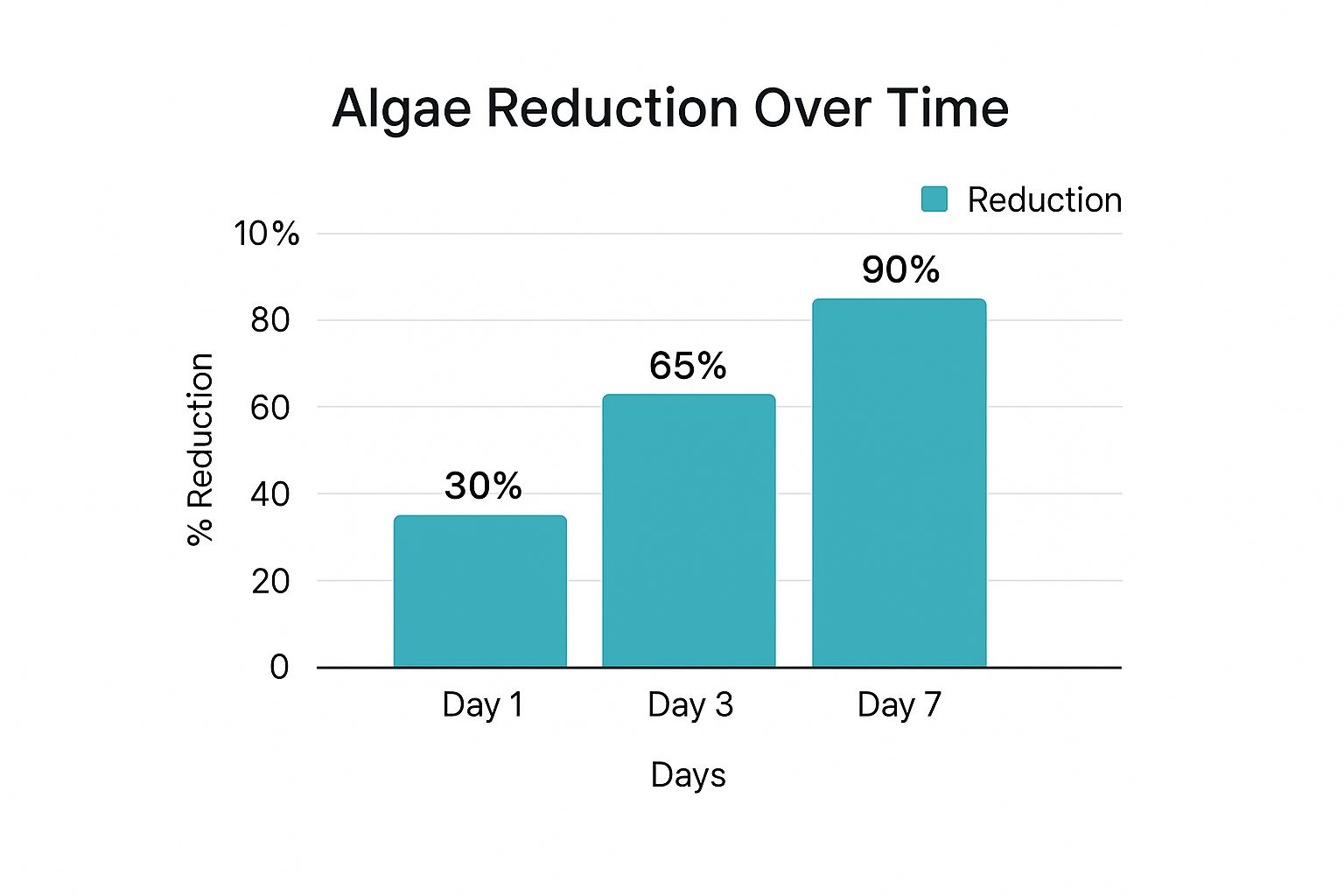

The chart below shows how quickly a correctly sized unit can make a dramatic difference.
As you can see, a properly matched UV clarifier is incredibly effective, slashing algae levels by 90% in just seven days.
Matching UV Wattage to Your Pond
A UV clarifier's power is measured in watts. A good rule of thumb is to use 'watts per 1,000 litres' to find the right size. For a lightly stocked pond in partial shade, a lower wattage will work. But for a typical koi pond in the sun, you need a much more powerful model.
This table will guide you. Find your pond's volume, consider its conditions, and see the recommended wattage. If in doubt, always go for the higher wattage.
UV Wattage Sizing Guide for Ponds
Use this guide to match the right UV clarifier wattage to your pond's specific conditions.
| Pond Volume (Litres) | Low Fish Stock / Partial Shade (Recommended Watts) | High Fish Stock / Full Sun (Recommended Watts) |
|---|---|---|
| Up to 5,000 | 11W | 25W |
| 5,000 - 10,000 | 15W | 30W |
| 10,000 - 20,000 | 25W | 55W |
| 20,000 - 30,000 | 30W | 75W |
| 30,000+ | 55W | 110W or more |
By following this table, you can confidently choose a unit with enough power, preventing the common mistake of under-sizing.
Also consider if you want a standalone unit or one built into an all-in-one filter box. Standalone clarifiers offer more flexibility and power, making them the top choice for most koi ponds. All-in-one units are convenient for smaller ponds but may lack the power for more demanding setups.
A Practical Guide to Installing Your UV Clarifier
You’ve picked the perfect ultraviolet clarifier for your pond, and now it's time to install it. Proper installation is key to achieving clear water, and it's a job most pond keepers can handle with basic tools.
The secret is understanding where the unit fits in your filtration circuit and ensuring all connections are solid. We'll walk you through the process so you can get your new clarifier running with confidence.
Safety First Before You Begin
Before touching any plumbing or electrical gear, safety is the top priority. Always completely disconnect the power to your pond pump and any other equipment.
Unplug everything from the mains for total peace of mind. This removes any risk of electric shock while you're working with water and pipework.
Finding the Ideal Placement
Where you place your UV clarifier in the filtration line is a crucial decision. The golden rule is to install it after the pond pump but before the main filter box.
This positioning is vital for two reasons:
- Debris Protection: Your pump acts as a pre-filter, stopping large debris like leaves from reaching the UV unit.
- Quartz Sleeve Safety: This setup protects the delicate quartz sleeve inside the clarifier from being clogged or damaged.
- Filter Efficiency: The clarifier clumps the dead algae, which is then immediately sent to the filter to be removed.
This sequence ensures that only relatively clean water flows through the clarifier, allowing the UV light to focus its energy on microscopic algae for maximum performance.
A Step-by-Step Installation Guide
With the power off and your spot chosen, you can begin the installation. Most external UV clarifiers connect with flexible pond hose and come with the necessary fittings.
-
Attach the Hosetails: Cut the multi-stage hosetails to match your pond hose diameter. Screw them tightly onto the inlet and outlet ports of the UV unit.
-
Cut the Hose to Length: Measure the hose needed to run from the pump's outlet to the clarifier's inlet. Cut the hose to size, ensuring there are no sharp kinks that could restrict water flow.
-
Secure the Connections: Slide a jubilee clip over the hose end before pushing it onto the hosetail. Push the hose on securely, then slide the jubilee clip down and tighten it fully with a screwdriver for a watertight seal.
-
Connect to the Filter: Repeat the process for the outlet side. Run a hose from the clarifier's outlet to your filter's inlet and secure it with another jubilee clip.
For complex plumbing, like systems built into tank walls, you may need specialised fittings for a professional, leak-proof seal.
Final Checks and Pro Tips
Once connected, perform a final check. Before turning the power back on, re-tighten every jubilee clip. Now, switch the pump on and watch every connection for drips.
If you spot a leak, turn the power off immediately and tighten the corresponding clip. Lastly, position the unit where it's easily accessible for future maintenance, like changing the bulb or cleaning the quartz sleeve.
Keeping Your UV Clarifier Working at Its Best
To keep your pond water clear, your ultraviolet clarifier for ponds needs routine attention. Like servicing a car, preventative maintenance ensures it runs efficiently.
This maintenance boils down to two essential jobs: changing the UV bulb on time and keeping the quartz sleeve clean. Get these right, and your unit will always deliver maximum algae-fighting power.
The Truth About Your UV Bulb
A crucial detail is that a UV bulb loses its clarifying power long before it stops glowing. While the bulb may still light up, its ability to combat single-celled algae will have dropped significantly.
The powerful UV-C light degrades with use. After months of continuous operation, its output becomes too weak to control a green water outbreak. The bulb is a consumable part.
For consistently clear water, you must replace your UV bulb every 6 to 12 months of continuous operation. An old bulb is one of the most common reasons a pond turns green again.
Make the bulb change part of your annual spring pond clean-out. This ensures you have full clarifying strength right when algae growth starts to accelerate. Having high-quality replacement UV bulbs ready makes this a quick job.
Keeping the Quartz Sleeve Spotless
The second piece of the puzzle is the quartz sleeve. This fragile, clear glass tube separates the UV bulb from the pond water, allowing UV light to pass through.
Over time, this sleeve gets coated in a film of limescale and grime. This build-up acts like a frosted window, blocking the UV light. A dirty sleeve can reduce your clarifier's performance by over 50%, even with a new bulb.
Cleaning it is straightforward but requires a delicate touch:
- Power Down: Always switch off and unplug the power to your UV clarifier and pond pump.
- Access the Sleeve: Carefully disassemble the unit according to the manufacturer’s instructions.
- Remove with Care: Gently slide the quartz sleeve out. It's fragile, so handle it carefully to avoid cracks.
- Clean Gently: Use a soft cloth and a gentle descaling solution, like white vinegar, to wipe away build-up. Never use abrasive pads.
- Rinse and Dry: Rinse the sleeve thoroughly with clean water, then dry it completely before reassembly.
By performing these two simple maintenance tasks, you'll keep your ultraviolet clarifier for ponds working at peak performance.
What to Do When Your UV Clarifier Isn't Working
You’ve installed your new ultraviolet clarifier for ponds, but the water is still stubbornly green. Don't worry—the solution is usually simple.
When your UV clarifier seems to be failing, a quick diagnostic check will often reveal the root cause. Most issues relate to the bulb's age, the quartz sleeve's cleanliness, the unit's size, or the water flow rate.
My Pond Is Still Green. What Should I Check First?
If your pond isn’t clearing up within a week or two, it's time to investigate. The issue is often an external factor, not a faulty unit.
Here’s a simple troubleshooting list:
- Check the Bulb's Age: A UV bulb loses its clarifying power after 6-12 months. An old bulb might still light up, but its UV-C output will be too weak.
- Inspect the Quartz Sleeve: Is the glass tube coated in limescale or grime? A dirty sleeve blocks UV light, reducing performance.
- Review Your Unit's Sizing: Is the clarifier powerful enough for your pond? Re-check your pond’s volume against the manufacturer’s recommendations, factoring in fish stock and sun exposure.
- Assess Your Pump's Flow Rate: Is water flowing through the unit too quickly? If the flow rate is too high, the water doesn't get enough exposure to the UV light.
The most common oversight is using an old bulb. Many assume that if the indicator light is on, it's working. In reality, a bulb's effectiveness plummets after a year, making replacement the top fix for a green pond.
Solving Leaks and Power Issues
You might encounter other common operational snags, which are usually simple to resolve.
What to Do About Leaks
Leaks almost always occur at the connection points where the hose meets the hosetails.
- Check Jubilee Clips: Ensure your jubilee clips are tight. Give them an extra turn with a screwdriver.
- Inspect the Hose Fit: Make sure the hose is pushed all the way onto the hosetail for a secure fit.
- Examine O-rings: When reassembling the unit, check that the main O-rings are correctly seated and free of grit.
If the Indicator Light Is Off
An unlit indicator light means the unit isn't getting power or the bulb has failed.
- Confirm Power Supply: Check that the unit is plugged in and the socket is on. Test the socket with another appliance to rule out a tripped fuse.
- Inspect the Bulb: An old bulb might have burned out. If it's over a year old, it's due for replacement anyway.
- Check Connections: Ensure the bulb is correctly seated and all internal electrical connections are secure.
By following these steps, you can quickly fix most issues with your ultraviolet clarifier for ponds.
Got Questions About UV Clarifiers? We've Got Answers
You might still have a few questions. Let's tackle some of the most common queries from pond owners.
Will a UV Clarifier Hurt My Fish or Good Bacteria?
This is a top question. The answer is a resounding no. Your UV clarifier is perfectly safe for fish, plants, and beneficial bacteria.
The UV light is contained within a sealed chamber. Only the water pumped through it is exposed. Your fish never get near the light. Most beneficial bacteria live on surfaces like your filter media and pond liner, so they never pass through the unit, leaving your biological filter untouched.
The UV light only neutralises free-swimming microbes like algae and some pathogens. The rest of your pond's ecosystem is left undisturbed.
How Quickly Will It Clear Up My Green Pond?
With the right size ultraviolet clarifier for your pond running, you should see a major improvement within 3 to 7 days.
By the end of the first week, your pond should be well on its way to being clear. If not, run through the troubleshooting checklist.
Does a UV Clarifier Get Rid of String Algae?
No, it doesn't. A UV clarifier is a specialist tool for the microscopic, single-celled algae that causes green water.
String algae (or blanket weed) is a different type that clings to pond surfaces. Since it isn't free-floating, the UV light can't reach it. You’ll need to remove it manually or use a specific string algae treatment.
Should I Run My UV Clarifier All the Time?
Yes, absolutely. To maintain clear, healthy water, your UV clarifier should run 24/7 with your pond pump, especially through spring, summer, and autumn.
Continuous operation ensures any new algae spores are zapped before they can multiply. This constant management is the secret to maintaining clear water all year long.
