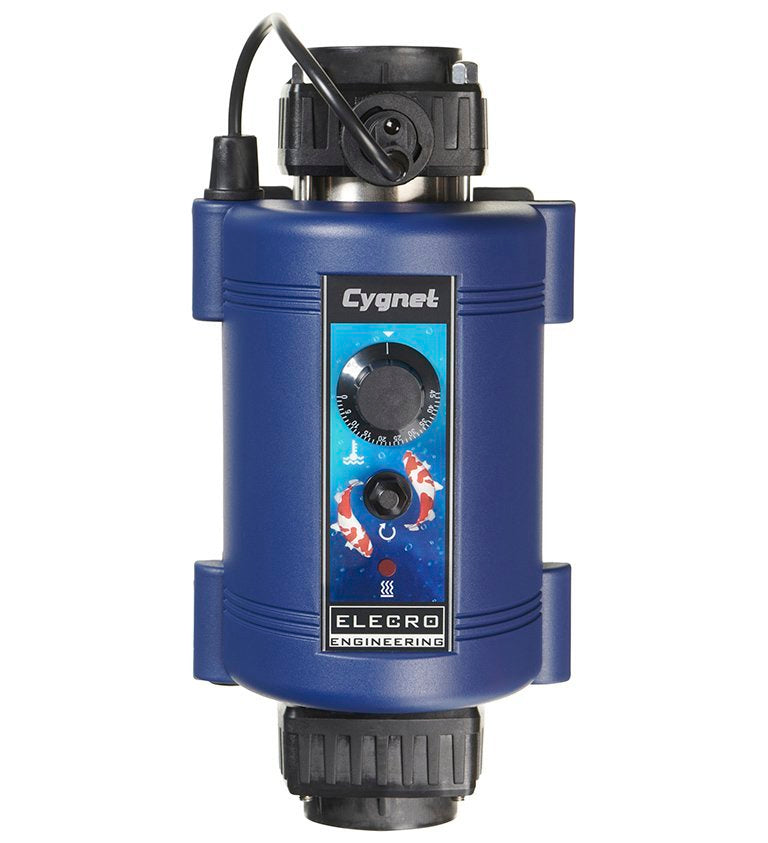

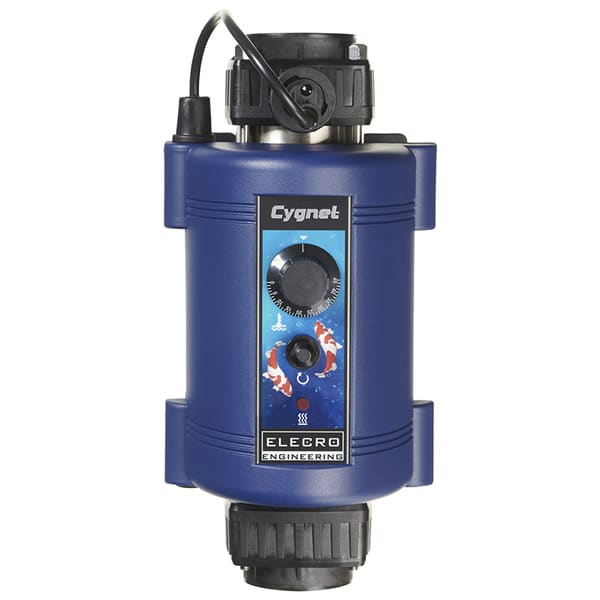

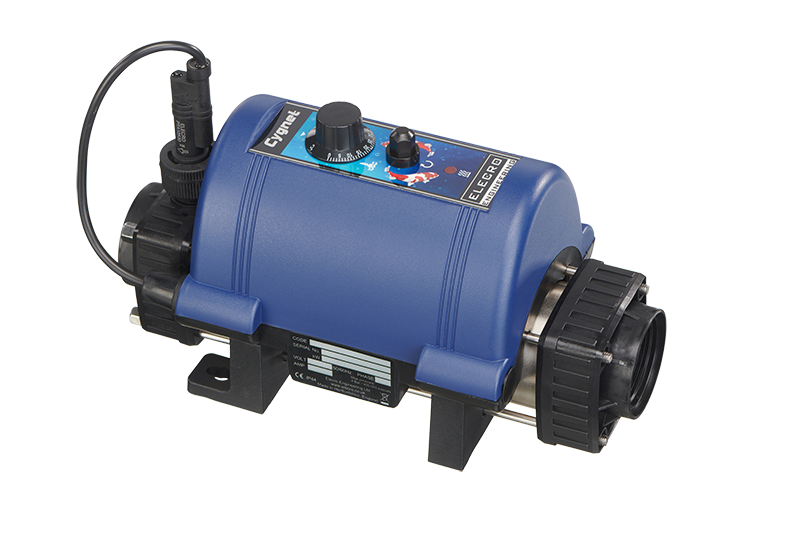

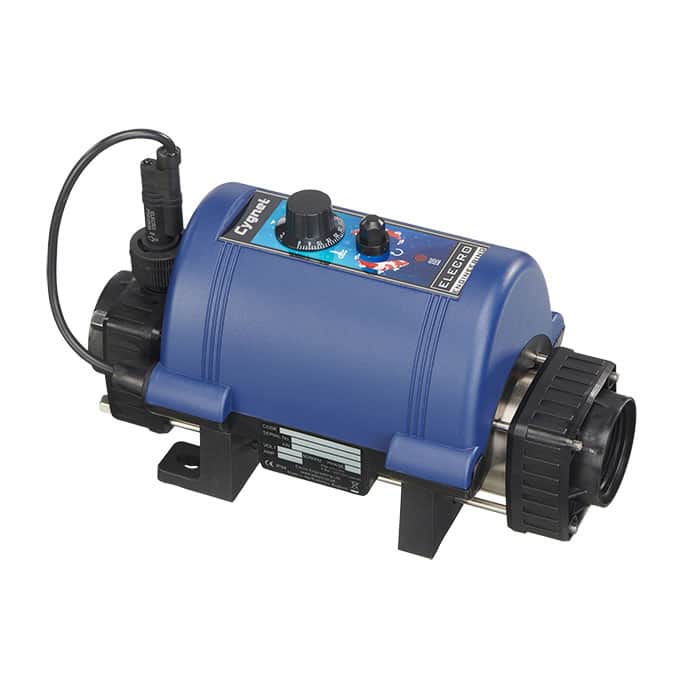

Elecro NANO Cygnet 2kW Analogue Pond Heater (Titanium Element)
Elecro NANO Cygnet 2kW Analogue Pond Heater (Titanium Element)
Couldn't load pickup availability
Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.
Features & Benefits
- Various power options ranging from 1-kW to 4-kW
- Easy installation, fully equipped and pre-wired
- Robust, durable construction
- Ultra-reliable flow switch allows safe operation
- Supplied with temperature thermostat and overheating sensor
- Compact, durable design
- Analogue control with 1.2°C differential
- Titanium flow tube and titanium heating element
- Can be floor or vertically wall mounted
- Vortex, long life, stay clean heating element technology
- 100% efficiency throughout the product life
- Silent operation
Technical Data
| Power Supply |
220-240V single phase |
|---|---|
| Flow Requirements |
Minimum flow: 1m³/h |
| Heating Element |
Grade 1 titanium |
| Flow Tube |
Grade 1 titanium |
| Control Thermostat |
Analogue: 0>45°C (1.2°C differential) |
| Safety Thermal Cut Out |
60°C (manual reset) |
| Flow Switch |
Gold tipped reed switch with titanium fulcrum pin |
| Relay |
Surface mount DPDT Finder 66.82.8.230.0000 |
| Seals |
High temperature special formula EPDM ferrules, TPE end fitting gaskets |
| Water Connections |
1.5" BSP female thread supplied with 1½" / 50mm stepped ABS unions for rigid pipe and 1½" / 1¼" stepped hose tails for flexible pipe |
| Ingress Protection Rating |
IP44 |
| Frequency |
50/60 Hz |
| Working Pressure |
4 bar maximum |
| Mounting |
Floor or wall mounting |
