ELEVATE QUICKSEAM MOLDED PIPE FLASHING

Can be cut to fit pipes 25mm – 152mm

Pre-fabricated with QuickSeam Tape on the base

Elevate QuickSeam Moulded Pipe Flashing available from Hatton Koi

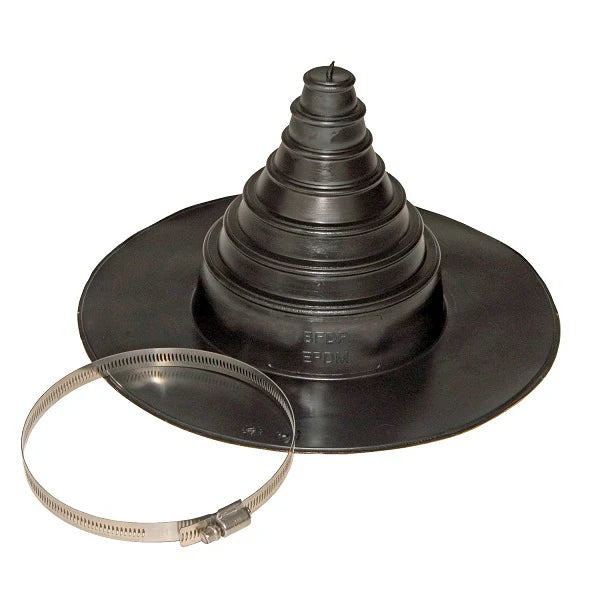

Elevate QuickSeam Moulded Pipe Flashing is used to flash around round rigid pipe inlets that penetrate the pond liner. The Pipe Flashing is a prefabricated boot, similar in shape to a witch hat, that has QuickSeam Tape laminated to a flange around the base so that it can be attached to the pond liner. It can be cut to fit pipes from 25mm to 152mm in diameter.

For details on how to install Pipe Flashing, please see Detailing Pipes in our Help and Guides section.

QuickSeam Pipe Flashing comes in one size only, but can be cut to fit various pipes by removing the required number of rings:

25 mm - 35 mm

41 mm - 48 mm

51 mm - 67 mm

70 mm - 92 mm

102 mm - 114 mm

127 mm - 141 mm

The correct size should always be verified on site prior to cutting the Pipe Flashing.
