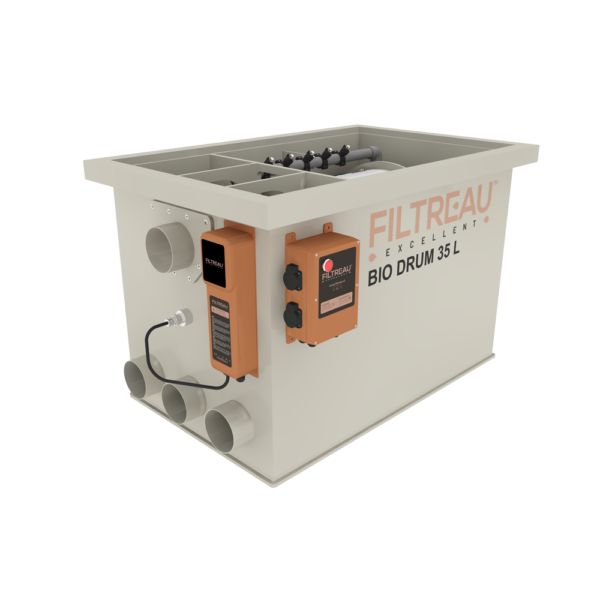

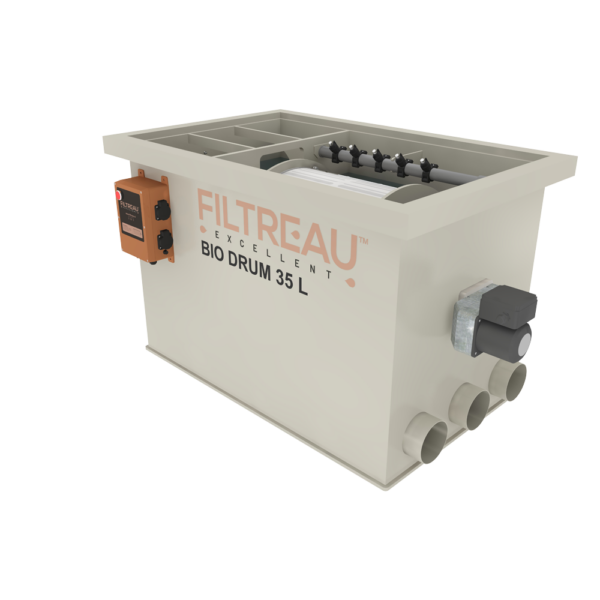

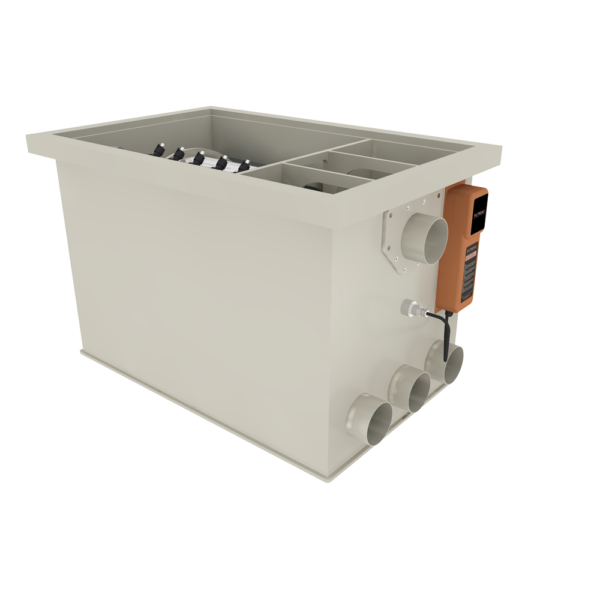

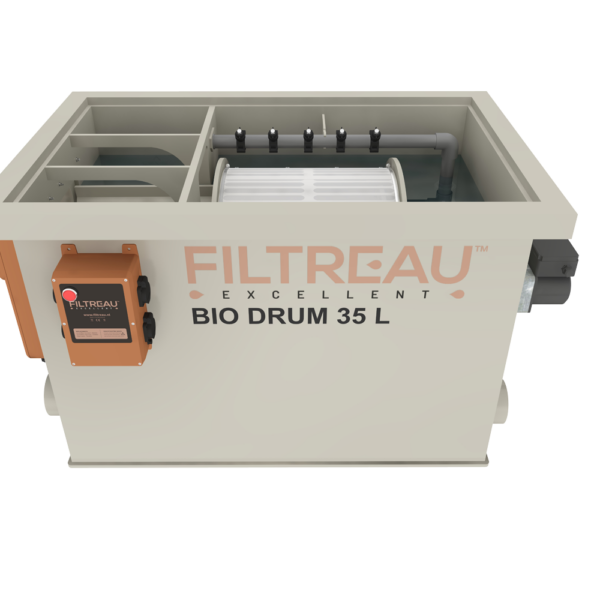

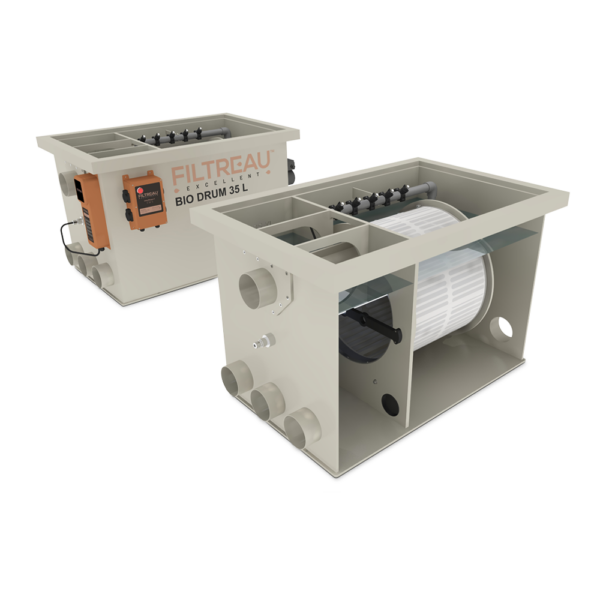

Filtreau "Excellent" Bio Drum 35 Gravity-fed For Koi Ponds

Filtreau "Excellent" Bio Drum 35 Gravity-fed For Koi Ponds

Regular price £2,850.00 GBP
Regular price Sale price £2,850.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Promote the clarity and quality of your koi pond water with the DRUM 35 L from Filtreau Excellent. Ideal for both mechanical and biological filtration, this filter system is guaranteed to contribute to an optimal habitat for all of your pond's flora and fauna.

SPG XL drive motor

Filtreau industrial SPG drive motor delivers 130Nm. The unit for torque (force x arm) is Newton meters. It is used to denote, among other things, the tractive force of a motor. These drive motors are constructed exclusively for Filtreau drum filters! The motors are mounted on the filter with a double seal to prevent both leakage and deformation.

UV-C HO 80 watt

The new immersion Filtreau UV-C Module UNOX stainless steel contributes to pure pond water. Both the ingenious design and high-quality materials turn out high UV-C radiation with a wavelength of exactly 253.7 Nm. This high dose of irradiation destroys virtually all bacteria, viruses and also fungi. Added chemicals, such as Chlorine, can be reduced by up to 80 percent resulting in purer healthier water!

Stainless Steel Floater

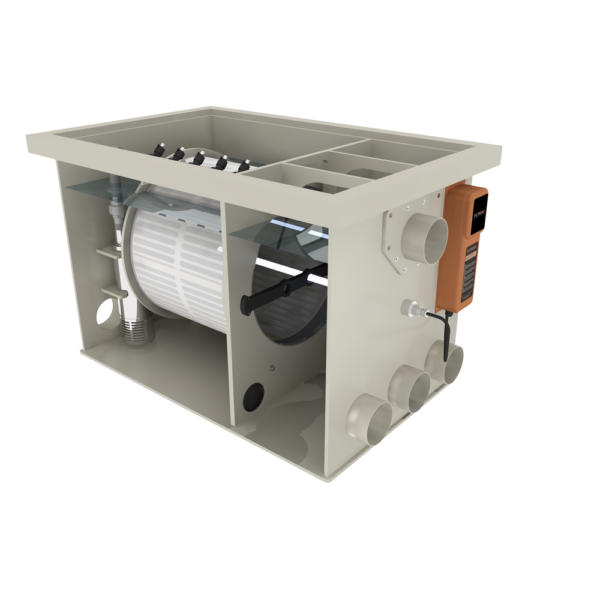

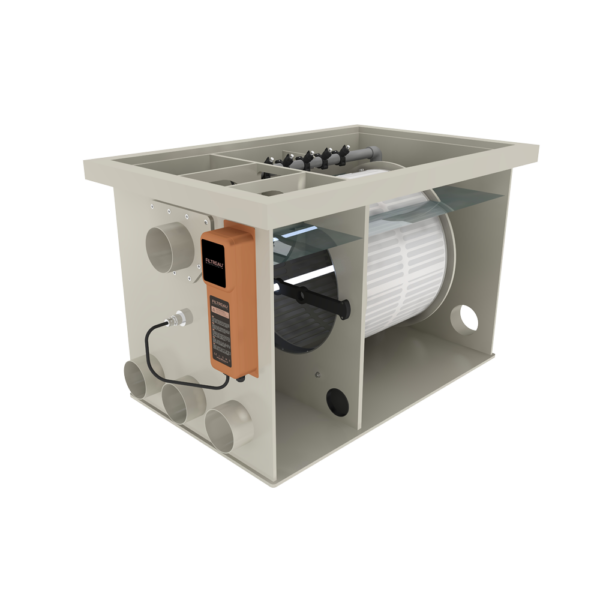

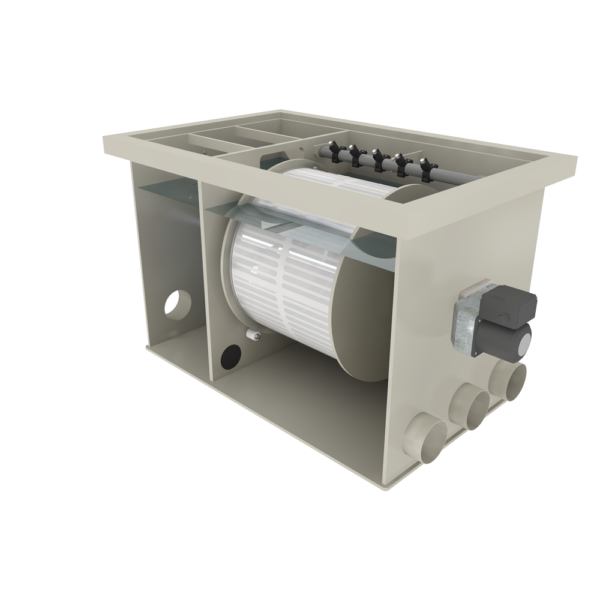

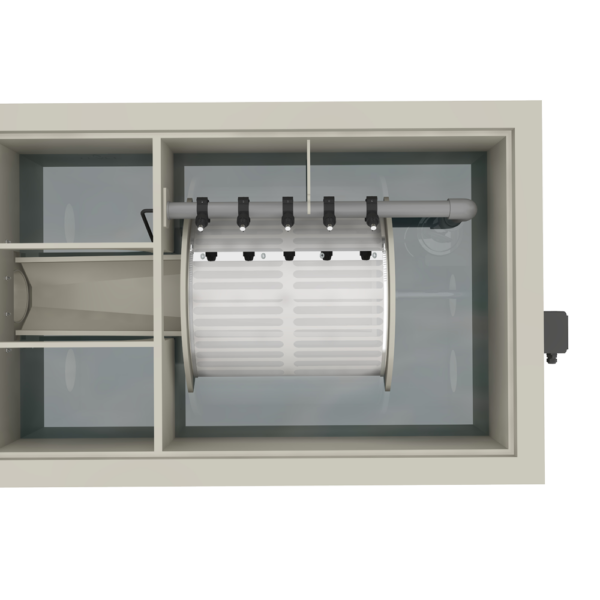

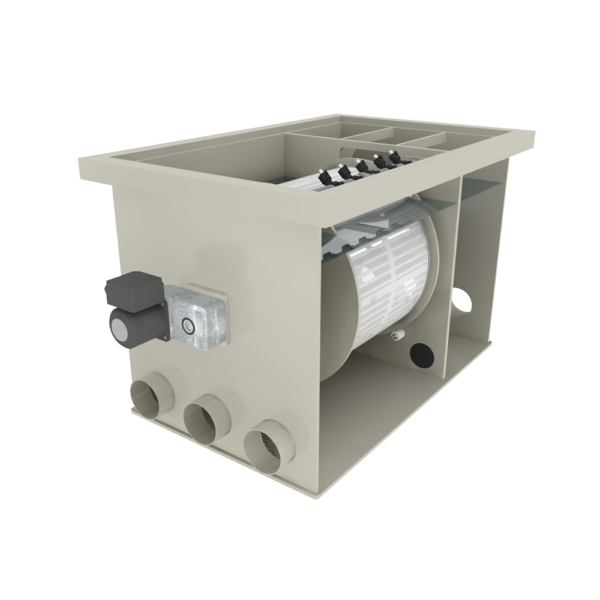

Dirt in the water prevents the water in the drum from flowing through the filter mesh as easily. The stainless steel floater triggers the flush function. This involves the drum spinning. The nozzles then spray water from the outside against the rotating drum.


Dimensions

Length: 1163mm

Width: 700mm

Height: 680mm


Technical Specification

Motor: 130Nm/60 Watt, 220 Volt

Type: Gravity

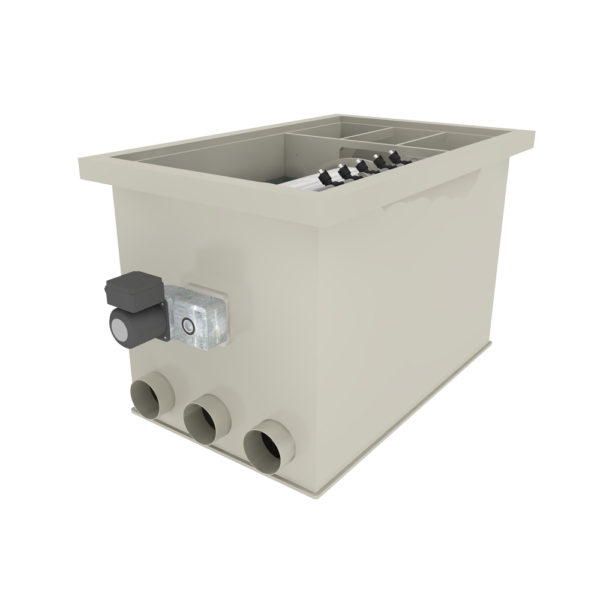

Inlet: 3 x 110mm

Outlet: 3 x 110mm

Drum: 500 x 400mm

Mesh screen PP with stainless steel mesh: 120μm

Flushing Pump (Internal): SS 5 Bar 600Watts, 220 Volt

Air Supply: 2 x 50 x 300mm

Including: Control Box

Pond Volume m3: 70m3

Max. pond capacity with koi: 35m3

Max. Flow: 35m3

UV-C Built In Unit: 800 watt H-O
