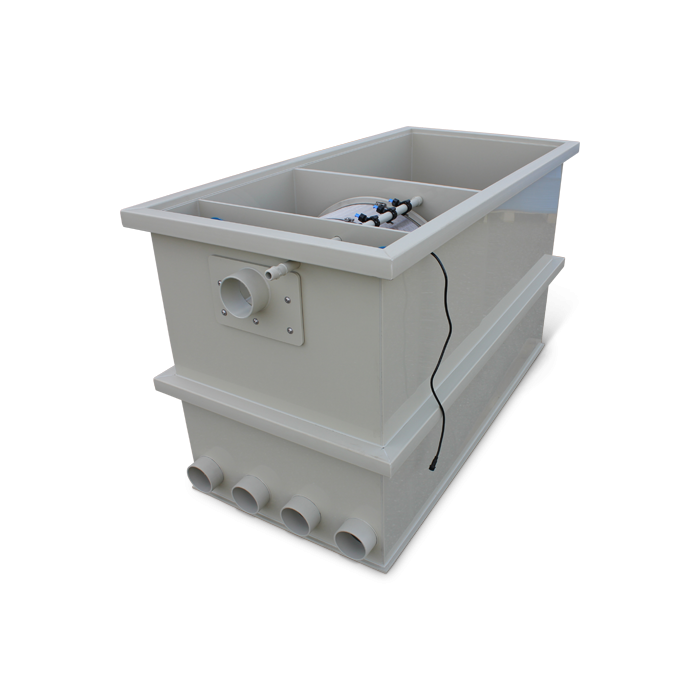

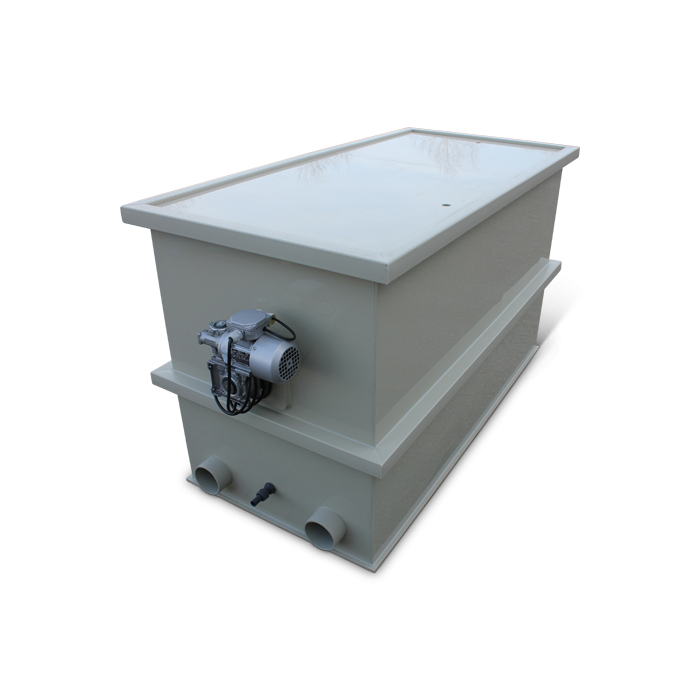

The SuperDrum Combi Bio 100 has a capacity of up to 50 m³/hour and a mesh size of 70 micron, including a volume of up to 420 litres for biological filter material.

How it works:
The water flows through the drum sieve which removes any dirt greater than 70 microns (0.07 mm). A water level sensor detects whether sufficient water is still flowing through the drum. Should the drum sieve become too clogged, it is automatically rinsed. The trapped dirt is then removed from the sieve fully automatically by the high-pressure pump, and the dirt is transported to the sewers via the nozzles and a drainage channel. The water then flows through the biological section where an air stone has already been fitted to ensure proper aeration, all in the same compact casing.

The SuperDrum can be buried entirely, and can be used with pump-fed applications. UV lamps can easily be fitted in the casing.

All SuperDrums are supplied with a cover, rinsing pump and control electronics, but without UV and biological filtration equipment.

Technical Data
