Thermotec Inverter Pro Heat Pump 17 kw Horizontal - For Koi Ponds up to 7500 gallons

The Thermotec Inverter Pro Horizontal Heat Pump range of pool heat pumps really do offer the best in terms of efficiency, performance, reliability, and low noise operation.

Thermotec Inverter Pro Horizontal Heat Pump range is fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool. The ability to adjust the output of the heat pump allows the Thermotec Inverter Pro Horizontal Heat Pump to deliver greatly reduced running costs with COPs of up to 13.

This means that for every 1kw of electricity used by the heat pump, 13kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market. In addition, the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.

They have larger evaporators (fins) which give more surface area to extract heat at low air temperatures. This allows the Thermotec Inverter Pro Horizontal Heat Pump to produce more heat than competitor heat pumps at low air temperatures, making them the best choice for koi ponds and indoor pools that are used all year round. The larger surface area also gives higher efficiency and reduced running costs all year round.

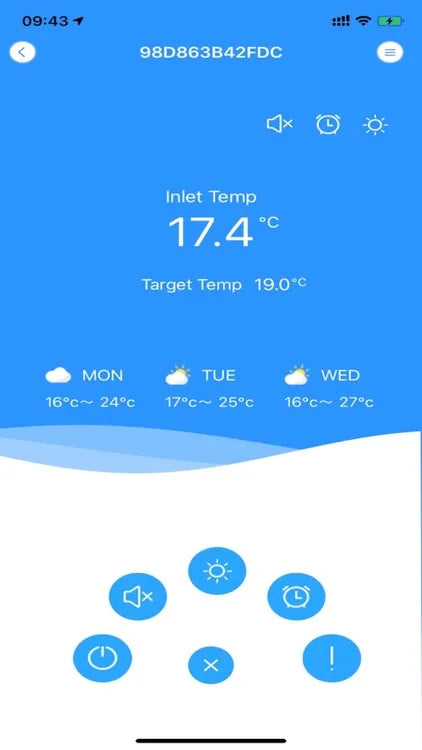

Wi-Fi Control

The FREE Wi-Fi module allows the Thermotec Inverter Pro Horizontal Heat Pump to be monitored and controlled from a smartphone or any internet web browser. The Aqua Temp  App is available for both Android and iPhone. The Aqua Temp app can then be installed into your smart phone to give full remote control and monitoring of your pool heat pump.

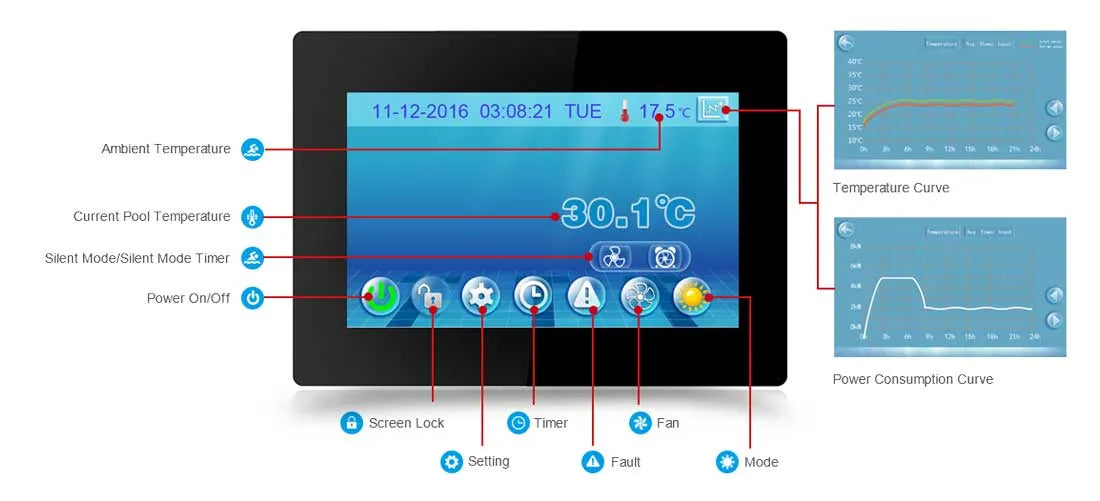

Colour Touch Screen Controls

The Thermotec Inverter Pro Horizontal Heat Pump have a unique 5″ colour backlit touch screen control/display panel

This provides easy to use controls

The display will show:

• The current pool water temperature
• The mode (e.g. heating or cooling)
• If the timer function has been set
• If the fan is operating
• The current time and date
• The outside ambient temperature
• If there is a fault, a fault code is displayed to explain the problem

In addition, the display can show:

• a graph showing the pool's temperature over time so you can see how the Thermotec Inverter Pro Horizontal Heat Pump maintains the temperature of the pool
• a graph of the heat pump's power usage over time

The colour display is backlit, making it easy to read in low light conditions and also in bright sunlight

Extremely Quiet Operation

The Thermotec Inverter Pool Heaters work very silently thanks to a unique internal ventilation system and the inverter technology.

Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore, once the pool is up to temperature, the unit can operate with reduced power consumption and noise.

Winter Cover and Mounting Feet Included

The Thermotec Inverter horizontal range of heat pumps come with:

• 2 x Water connection unions (with 50mm glue socket outlets; 1.5″ adaptor bushes available as an option)
• 1 x Basic Winter cover (heavy duty winter cover available as an option)
• 4 x Rubber mounting feet (heavy duty mounting blocks available as an option)

For koi ponds, the Thermotec Inverter Pro Horizontal Heat Pump range can be programmed to give a temperature control accuracy (swing) of +/- 0.5 °C or less without requiring a separate external thermostat.

Note: When using a heat pump to heat a koi pond, a backup heater should also be installed to provide additional heat in extremely cold weather and in the rare event that the heat pump does not function. A minimum pond water temperature of +8 °C is required in order for the heat pump to start.

Features

• Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with maximum heat output
• High efficiency with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is returned to the pool.
• The desired water temperature can be adjusted in steps of 0.1 °C.
• Equipped with an easy to use 5-inch colour touch screen display / control panel.
• Remote control and monitor your heat pump via an app on your smartphone
• Remote support from HeatPumps4Pools via the wifi module, supplied free of charge with each heat pump
• Top quality Mitsubishi variable speed inverter compressor
• Brushless variable speed DC fan motor—very efficient with extremely quiet operation
• Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
• Display shows temperature & power consumption curves to monitor the performance of the heat pump
• Six different models:9kw, 12kw, 17kw, 19.5kw, 24.2kw, 28 kw and 34kw
• All models single phase power (ie 220v to 240v)
• Suitable for pools, swim spas, hot tubs and koi ponds etc
• Desired water temperature can be set from +10c to +40c
• Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
• Low noise, variable speed fan.
• Corrosion resistant case
• Microprocessor controlled
• Fully programmable via the colour touch screen control panel
• Automatic hot gas defrosting.
• Ideal for use on koi ponds—fully programmable temperature accuracy (swing)—down to 0.5c above and below desired water temperature. No external thermostat required.
• No need to purchase a separate external thermostat for accurate temperature control
• Titanium heat exchanger—resistant to corrosion from chlorine or salt pools.
• Operates in air temperatures as low as -15 °C.
• Capable of heating and cooling, all year round.
• WiFi module: control the heat pump from your smartphone or any web browser
• Built in timer function
• Built in water flow switch
• Includes condensate drain hoses and drain spouts to allow condensation water to be diverted to a flower bed etc.
• Refrigerant gas type – R32 for all models except 34kw single-phase model, which uses R410a refrigerant
• Free WiFi

COP And Performance

By using the latest inverter technology, the Thermotec Inverter can out perform traditional on/off type heat pumps as well as many other inverter driven models.Even as the outside air temperature falls, the Thermotec Inverter will still perform well, delivering heat to your pool.The Thermotec Inverter heat pumps can work well with outside air temperatures as low as -15c The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)By using the latest inverter technology, the Thermotec Inverter has COPs up to 13.6. This means that in these conditions, 1kw of electricity consumed by the heat pump will output 13.6kw of heat to your pool !
