Thermotec

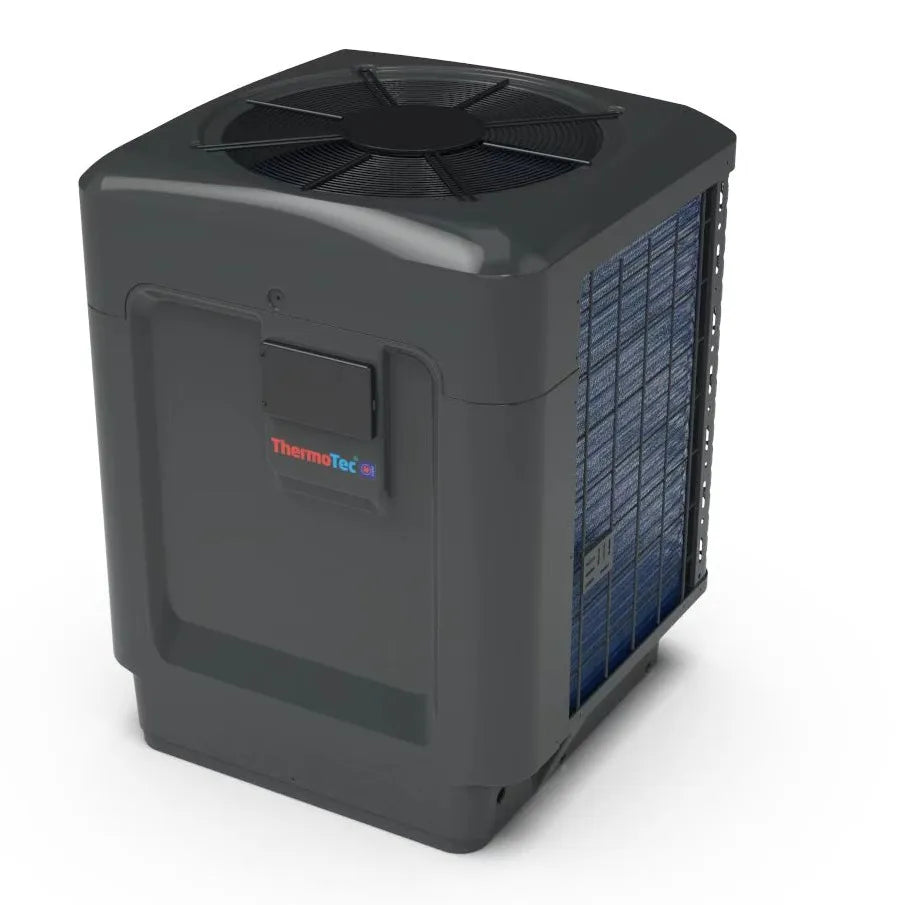

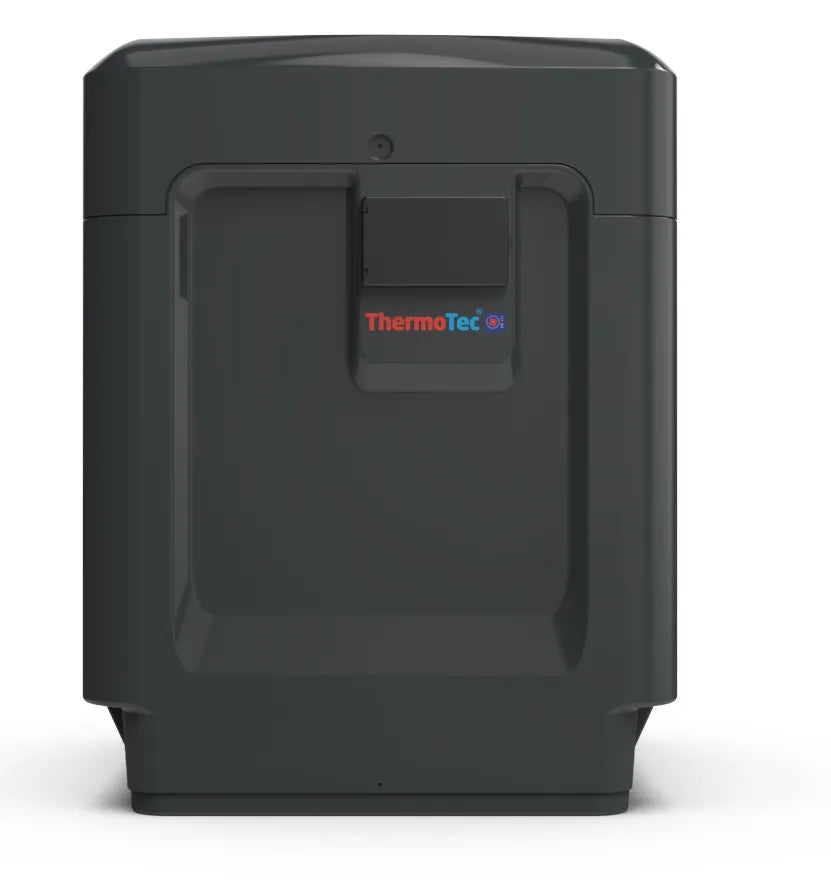

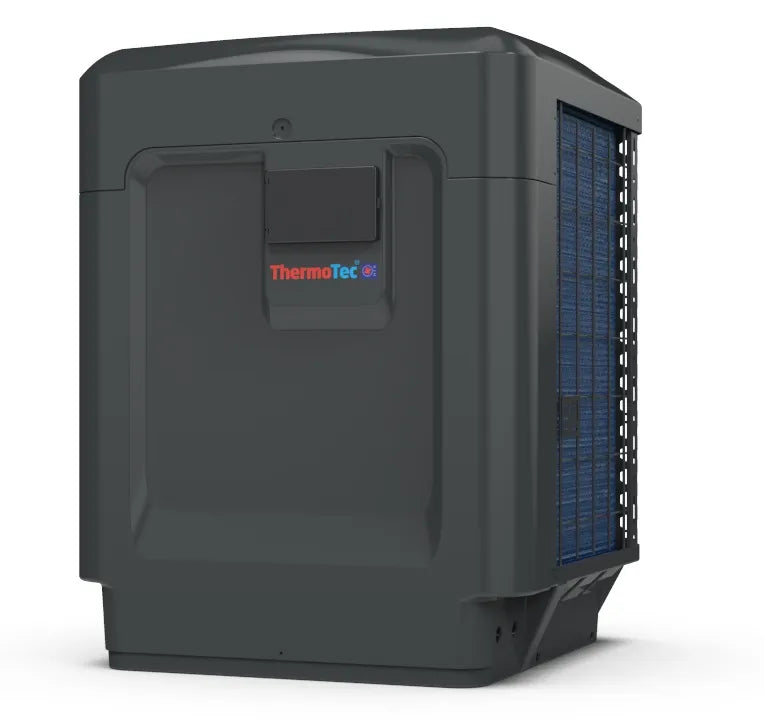

Thermotec Inverter Pro Vertical Heat Pumps For Koi Pond & Pool Heater with Wifi 34w

Thermotec Inverter Pro Vertical Heat Pumps For Koi Pond & Pool Heater with Wifi 34w

Regular price £5,395.00 GBP
Regular price Sale price £5,395.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Thermotec Inverter Vertical Heat Pump range of pool heat pumps really do offer the best in terms of efficiency, performance, reliability and low noise operation.

HeatPumps4Pools are the leading specialist supplier of swimming pool heat pumps. We have many years of experience in the market and have used our expertise to research and design our own range of swimming pool heat pumps.

The New Thermotec Inverter Vertical Heat Pump range are fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool. The ability to adjust the output of the heat pump allows the New Thermotec Inverter Pro Vertical to deliver greatly reduced running costs with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market. In addition the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply.

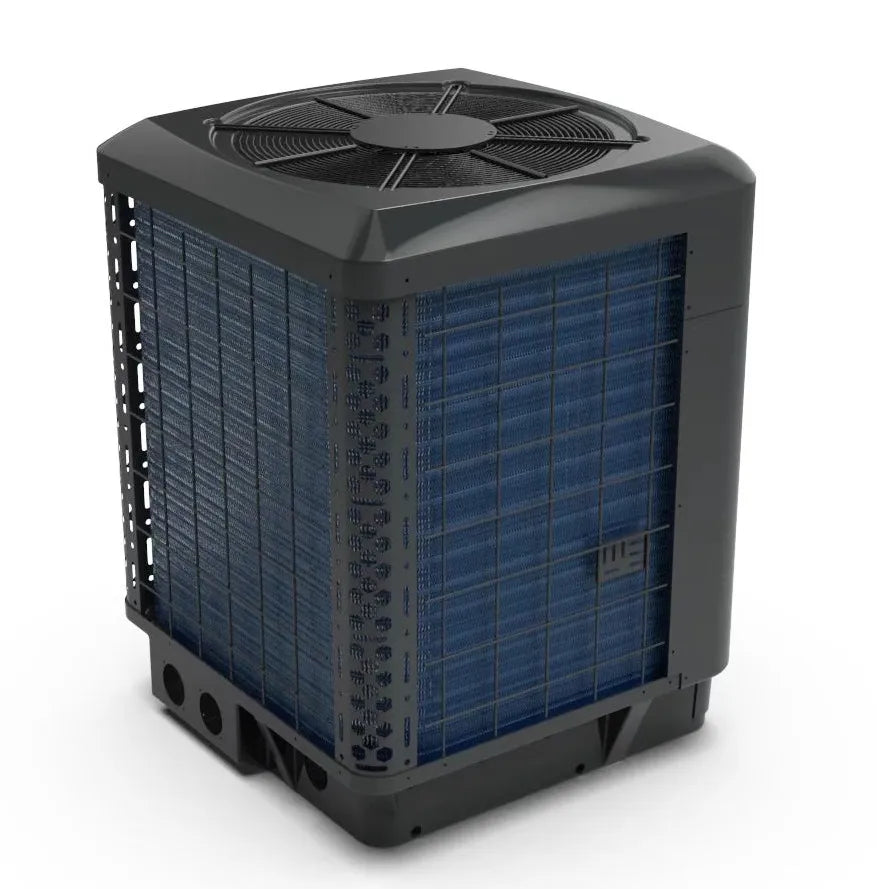

They have larger evaporators (fins) which gives more surface area to extract heat at low air temperatures. This allows the Thermotec Inverter to produce more heat than competitor heat pumps at low air temperatures, making them the best choice for koi ponds and indoor pools which are used all year round. The larger surface area also gives higher efficiency and reduced running costs all year round.

The Aqua Temp App is available for both Android and iPhone. The Wi-Fi module simply connects to the heat pump via the supplied cable. The module is then joined to your Wi-Fi network to allow it to communicate with the internet

The wifi module also allows HeatPumps4Pools to provide remote monitoring and support of your heat pump with the ability to change any settings if required. This greatly enhances the speed and efficiency of our technical support.

The Aqua Temp app can then be installed into your smart phone to give full remote control and monitoring of your pool heat pump.

Please Note: A a wifi signal is required at the location of the heat pump in order for the wifi module to be able to connect to your wifi.

Please test the strength of the wifi signal eg with a laptop or your smart phone before purchasing the wifi module.

If you do not have a wifi signal at the heat pump’s location, then you can either:-

  1. Use a wifi signal extender to boost the signal in the area of the heat pump
  2. Use power LAN adaptors plugged into mains sockets in the house and the pool shed. You can then connect a wifi extender to the powerlan adaptor in your pool shed to deliver wifi to the wifi module.
  3. Purchase the Thermotec Inverter Vertical Heat Pump 3G/4G Mobile Data Module (DTU) which uses the mobile data network

Colour Touch Screen Controls

The Thermotec Inverter have a unique colour backlit touch screen control/display panel

This provides easy to use controls

460b7e5b9663824043fee43bf93a9907

The display will show:-

  • The current pool water temperature
  • The mode (e.g. heating or cooling)
  • If the timer function has been set
  • If the fan is operating
  • The current time and date
  • The outside ambient temperature
  • If there is a fault, a fault code is displayed to explain the problem

In addition, the display can show:-

  • A graph of the temperature of the pool over time so that you can see how the pool temperature is being maintained by the Thermotec Inverter heat pump
  • A graph of the power consumed by the heat pump over time

The colour display is backlit making it easy to read in low light conditions and also in bright sunlight

Features

  • The Thermotec Inverter Pro 34kw single phase is the most powerful single phase heat pump available in the UK. Ideal for larger pools.
  • Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with maximum heat output
  • High efficiency with COPs of up to 13. This means that for every 1kw of electricity used by the heat pump, 13kw of heat is returned to the pool.
  • The desired water temperature can be adjusted in steps of 0.1  °C.
  • Equipped with an easy to use 5-inch colour touch screen display / control panel.
  • Remote control and monitor your heat pump via an app on your smartphone
  • Remote support from HeatPumps4Pools via the wifi module
  • Top quality Mitsubishi variable speed inverter compressor
  • Brush-less variable speed DC fan motor – very efficient with extremely quiet operation
  • Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
  • Display shows temperature & power consumption curves to monitor the performance of the heat pump
  • Six different models:12kw, 17kw, 19.5kw, 24.2kw, 28 kw and 34kw
  • Models include single and 3 phase power (ie 220v to 240v)
  • Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
  • Low noise, variable speed fan.
  • Corrosion resistant case
  • Microprocessor controlled
  • Automatic hot gas defrosting.
  • Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
  • Operates in air temperatures as low as -15  °C.
  • Capable of heating and cooling, all year round.
  • Refrigerant – R32 in all models except 34kw single phase, which uses R410a refrigerant
  • Free Wi-Fi
  • 2 x Water connection unions (with 50mm glue socket outlets – 1.5″ adaptor bushes available as an option)
  • 3-Year Parts & Labour Warranty on all parts

Extremely Quiet Operation

The Thermotec Inverter range work very silently thanks to a unique internal ventilation system and the inverter technology.

Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore once the pool is up to temperature, the unit can operate with reduced power consumption and noise.

Sizing & Models

The sizing guide for a covered pool is:-

Model Kw
Recommended Max Pool Volume
 Absolute Max Pool Volume
Thermotec Inverter Horizontal 9kw 9kw 30m3 45m3
Thermotec Inverter Horizontal 12kw 12kw
40m3
60m3
Thermotec Inverter Horizontal 17kw 17kw
50m3
75m3
Thermotec Inverter Horizontal 20kw 19.5kw
65m3
95m3
Thermotec Inverter Horizontal 24kw 24.2kw
75m3
120m3
Thermotec Inverter Vertical 29kw 28.6kw
93m3
116m3
Thermotec Inverter Vertical 34kw 34kw 109m3 136m3
Thermotec Inverter Vertical 34kw (3 Phase) 34kw 109m3 136m3



All Thermotec Inverter heat pumps are for single or 3 phase power (ie 220v to 240v) to suit most properties

Specification

COP And Performance

By using the latest inverter technology, the Thermotec Inverter can out perform traditional on/off type heat pumps as well as many other inverter driven models.

Even as the outside air temperature falls, the Thermotec Inverter will still perform well, delivering heat to your pool.

The Thermotec Inverter heat pumps can work well with outside air temperatures as low as -15c

The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)

By using the latest inverter technology, the Thermotec Inverter has COPs up to 20.04. This means that in these conditions, 1kw of electricity consumed by the heat pump will output 20.04kw of heat to your pool !

Warranty

The Thermotec Inverter heat pumps come with a 3-year warranty on all components and 5-year warranty on the compressor and heat exchanger:-

  • 3-year parts & labour warranty on all components
  • 5-year warranty on the compressor and heat exchanger (parts only after year 3)
  • UK: 3-years parts and labour warranty
  • Europe and Outside the UK: Warranty is parts only warranty or return to us in the UK (customer pays transport cost). If spare parts are required, they will be sent free of charge to a UK address. If they are to be shipped outside the UK, the customer pays the international shipping cost

We recommend that you retain the pallet and packaging that the heat pump was delivered with in case you need to return the unit to us for repairs under the warranty.

The warranty will not apply where the heat pump has been installed incorrectly, or has been damaged by freezing

We are happy to provide technical support for all Inverter+ swimming pool heat pumps that we supply.

We hold spare parts to support all Thermotec Inverter heat pumps both during and after the warranty period

Delivery

The range of Thermotec Inverter pool heat pumps are now in stock in the UK and can be shipped to any UK address on a 1 – 3 day delivery service.

The price includes FREE UK delivery.
