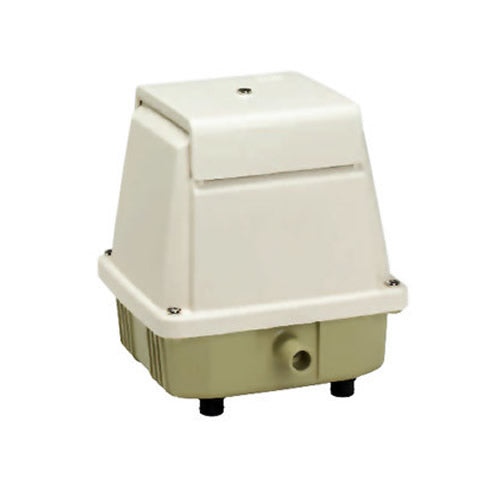

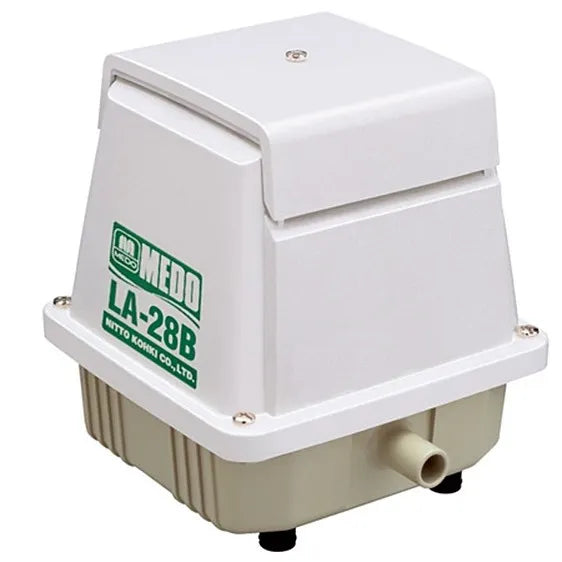

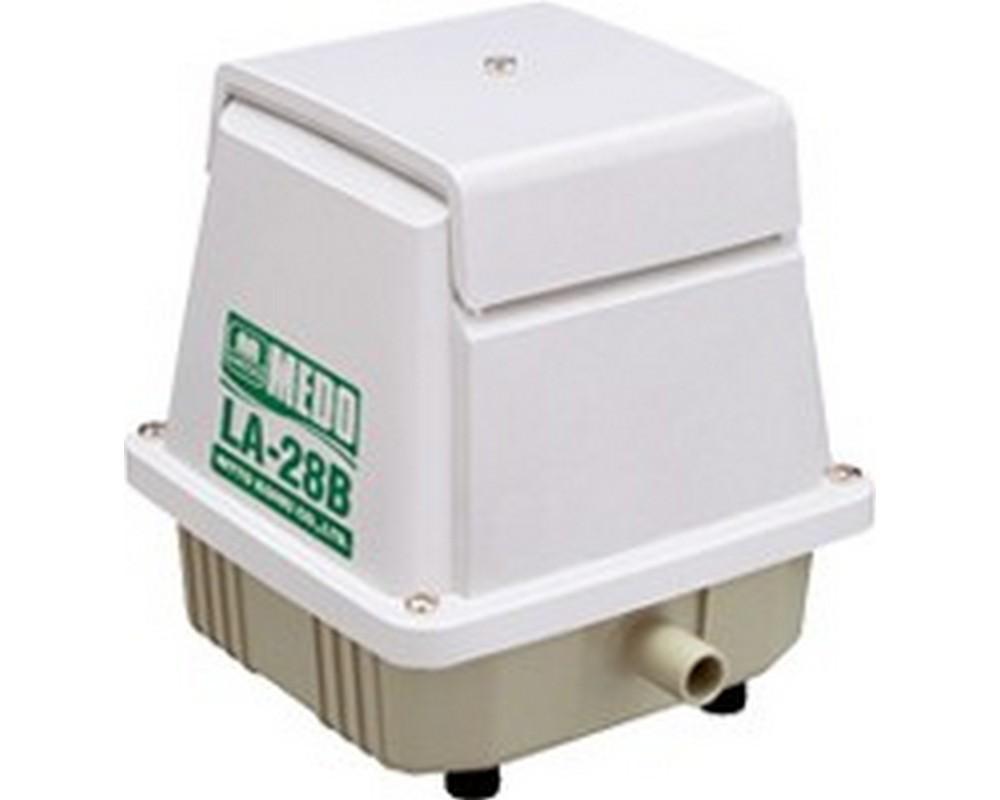

Medo Air pumps linear-motor-driven Free Piston System has an internal piston inside the cylinder which is driven by an electro-magnet and spring system controlled by the alternating input current cycle.
The Medo Air pumps piston forms a single combined structure of two usually different devices; motor and pump.
Medo Air pumps are quiet and vibration free, and offers the advantages of easy maintenance and a long operating life.
| Power Supply: |
230 V
120 V |
| Rated Frequency: |
50 Hz
60 Hz |
| Rated Pressure: |
0.11 bar |
| Operating Power Range: |
0,05 - 0,2 bar |
| Airflow at Rated Pressure: |
28 l/min |
| Power Consumption: |
29 W
25.5 W |
| Weight: |
2.9 kg |
